VIDEO LOGGING

DOWN HOLE CAMERA

E-line Down Hole Camera. Runs with Customer Truck
The latest Down Hole Fiber Camera Technology
- 30 Frames Per Second Color or Monochrome Fiber
- Real Time On Site Video Of Your Entire Well
Down View & Rotating Side View
Streaming Available During the Run To Any Offsite Location
Down Hole Measuring Capable During The Run Or Anytime Thereafter
Measure Perfs, Cracks, Splits, Top Of The Fish

MaxCam Render

Bad Info

Bad Info

When nothing seemed to go right on several workovers of recently acquired older wells, MaxCam was called to run a camera and find what the problem was. It was found that the schematics the operator had for the older wells were quite inaccurate. What the camera showed and what the schematics showed were very different.

Cable Fish

Cable Fish

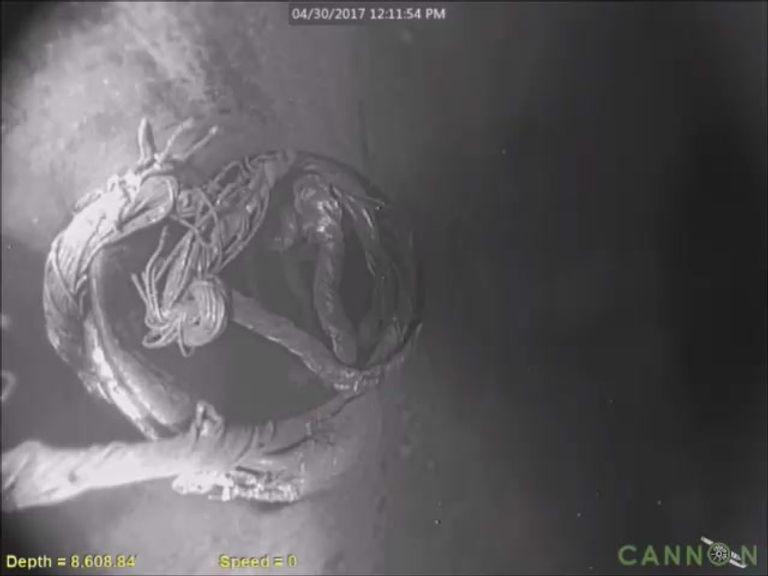

MaxCam was called out to hunt for an elusive cable fish with its camera and the problem causing species was found and removed. While the cable fish is a great catch it is terrible eating.

Collapse and Milled Window

Collapse and Milled Window

After attempting to mill thru an obstruction and still not being able to get past, the operator ran a camera to inspect the AOI. It was found that the casing had collapsed, and the milling operation cut a window into the casing. The camera shows views from inside the casing and open hole.

Plug and Part

Plug and Part

After running a camera which identified a plug as the source of an obstruction, the operator milled the plug to remove it and ran the camera again to check the results. It was then found that the reason the plug had been lodged in the first place was due to parted casing.
